Let’s put the iPhone 17 Pro and iPhone 17 Pro Max side by side as if they were twins in a crowd. Due to their shared family traits, they’re likely to resemble each other closely, sharing the same design, processor, and camera system. However, even that changes with a thorough and intentional examination.
In this comparison, you’ll learn about:
- The full specifications of the iPhone 17 Pro and Pro Max
- How these specifications contribute to exceptional performance
- Pros and cons of each model
- Who should consider each model
- Frequently asked questions about these models
The full specifications of iPhone 17 Pro and Pro Max
| Feature | iPhone 17 Pro | iPhone 17 Pro Max |
| Finish & Build | Silver, Cosmic Orange, Deep Blue; Aluminum unibody; Ceramic Shield 2 front & back | Silver, Cosmic Orange, Deep Blue; Aluminum unibody; Ceramic Shield 2 front & back |
| Capacity | 256GB, 512GB, 1TB | 256GB, 512GB, 1TB, 2TB |
| Dimensions & Weight | Width: 2.83 in (71.9 mm)Height: 5.91 in (150.0 mm)Depth: 0.34 in (8.75 mm)Weight: 7.27 oz (206 g) | Width: 3.07 in (78.0 mm)Height: 6.43 in (163.4 mm)Depth: 0.34 in (8.75 mm)Weight: 8.22 oz (233 g) |
| Display | Super Retina XDR OLED, 6.3″ diagonal2622×1206 pixels, 460 ppi, Dynamic Island, Always-On, ProMotion up to 120Hz, HDR, True Tone, Wide Colour (P3), Haptic Touch | Super Retina XDR OLED, 6.9″ diagonal2868×1320 pixels, 460 ppi, Dynamic Island, Always-On, ProMotion up to 120Hz, HDR, True Tone, Wide Colour (P3), Haptic Touch |
| Brightness & Contrast | 2,000,000:1 contrast ratio (typical), 1000 nits max (typical), 1600 nits HDR peak, 3000 nits outdoor peak | Same as iPhone 17 |
| Water & Dust Resistance | IP68 (up to 6m for 30 min) | IP68 (up to 6m for 30 min) |
| Chip | A19 Pro chip6-core CPU (2P+4E)6-core GPU with Neural Accelerators16-core Neural EngineHardware-accelerated ray tracing | Same as iPhone 17 Pro |
| Rear Camera System | 48MP Pro Fusion:Main 24mm f/1.78, 2nd-gen sensor-shift OIS, 12MP/48MP super-high-resTelephoto 48mm f/1.78, 2nd-gen sensor-shift OISUltra Wide 13mm f/2.2, 120° FoVTelephoto 100mm f/2.8, 3D sensor-shift OIS, tetraprism design, 16x optical-quality zoom range | Same as iPhone 17 Pro |
| Front Camera | 18MP Center Stage, f/1.9, Autofocus with Focus Pixels, Retina Flash, Center Stage for video/photos, Photonic Engine, Smart HDR 5, Night mode, 4K Dolby Vision video up to 60fps, ProRes up to 4K 60fps | Same as iPhone 17 Pro |
| Video Recording | 4K Dolby Vision up to 120 fps, 1080p/720p Dolby Vision, Cinematic mode 4K/30fps, Action mode 2.8K/60fps, ProRes & ProRes RAW support, Slo-mo up to 4K/120fps | Same as iPhone 17 Pro |
| Battery Life | Video playback: Up to 33hStreaming: Up to 30hFast charge 50% in 20 min (40W adapter) | Video playback: Up to 39hStreaming: Up to 35hFast charge 50% in 30 min (30W adapter with MagSafe) |
| Biometrics | Face ID (TrueDepth) | Face ID (TrueDepth) |
| Emergency Features | Emergency SOS via satellite, Crash Detection, Roadside Assistance via satellite, Messages via satellite, Find My via satellite | Same as iPhone 17 Pro |
| Cellular & Wireless | 5G sub-6 & mmWave, Gigabit LTE, Wi-Fi 7, Bluetooth 6, Thread, Ultra Wideband 2nd-gen, NFC with reader mode, Express Cards | Same as iPhone 17 Pro |
| External Buttons & Ports | Volume up/down, Action button, Camera Control, Side button, Stereo speaker, USB-C, built-in mics | Same as iPhone 17 Pro |
| Charging & Expansion | USB-C (DisplayPort, USB 3 up to 10Gbps), MagSafe 25W, Qi wireless 25W, 40W/30W adapters support | Same as iPhone 17 Pro |
| Sensors | Face ID, LiDAR, Barometer, Gyro, Accelerometer, Proximity, Dual ambient light sensors | Same as iPhone 17 Pro |
| SIM & Apple Pay | Dual eSIM, Apple Pay, Apple Cash, Apple Card | Same as iPhone 17 Pro |
| Video & Audio Calling | FaceTime HD 1080p, Center Stage, Spatial Audio, Voice Isolation, Wide Spectrum, SharePlay | Same as iPhone 17 Pro |
| Audio & Video Playback | AAC, APAC, MP3, ALAC, FLAC, Dolby Digital/Plus/Atmos, Spatial Audio, HEVC, H.264, AV1, ProRes, HDR Dolby Vision, HDR10+ | Same as iPhone 17 Pro |
| Siri | Apple Intelligence powered, voice and Type to Siri | Same as iPhone 17 Pro |
| OS & Privacy | iOS 26, end-to-end encryption, privacy protections, Apple Intelligence | Same as iPhone 17 Pro |
| Accessibility | VoiceOver, Zoom, Magnifier, Voice Control, Switch Control, AssistiveTouch, Eye Tracking, RTT/TTY, Closed/Live Captions, Personal Voice, Live Speech | Same as iPhone 17 Pro |
| Built-in Apps | Full Apple ecosystem apps: App Store, Books, Calculator, Calendar, Camera, Clips, Clock, Compass, Contacts, FaceTime, Files, Find My, Fitness, Freeform, GarageBand, Health, Home, iMovie, iTunes Store, Journal, Keynote, Magnifier, Mail, Maps, Messages, Music, News, Notes, Numbers, Pages, Passwords, Phone, Photos, Podcasts, Reminders, Safari, Settings, Shortcuts, Stocks, Tips, Translate, TV, Voice Memos, Wallet, Watch, Weather | Same as iPhone 17 Pro |
| Environmental & Materials | 30% recycled content, 50% recycled aluminium, 100% recycled cobalt, 95% lithium, 100% recycled gold/tin in PCB, 100% recycled tungsten/copper in Taptic Engine, 100% recycled copper in vapour chamber, 100% rare earth in magnets, renewable energy 40% | Same as iPhone 17 Pro |
| Packaging & Waste | 100% fiber-based packaging, zero waste, designed for efficiency | Same as iPhone 17 Pro |
| Included in Box | iPhone with iOS 26, USB-C Charge Cable (1 m), Documentation | Same as iPhone 17 Pro |
What these specifications mean and how they work together
Performance

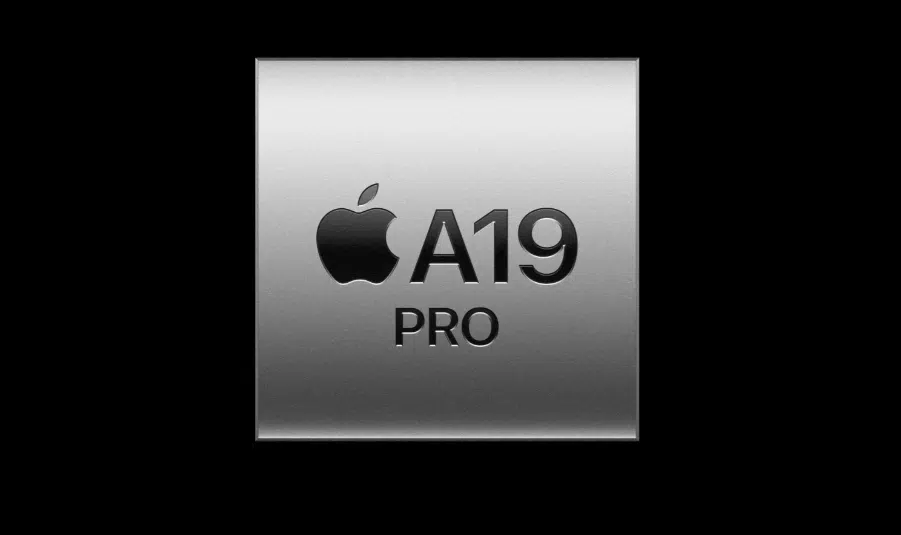

Both iPhone 17 Pro models are powered by the A19 Pro chip, combining a 6-core CPU, 6-core GPU, and a 16-core Neural Engine. This powerhouse ensures fluid multitasking, smooth performance in high-end games, and faster AI-based functions such as image processing and Siri tasks. Hardware-accelerated ray tracing further enhances graphics quality for gaming and professional creative apps, allowing for rich 3D effects and realistic visuals.
Display and Design

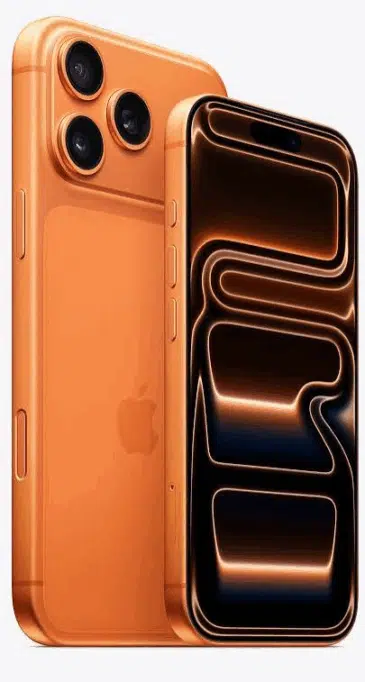

The Pro’s 6.3-inch display and the Pro Max’s 6.9-inch display are both Super Retina XDR OLED panels with ProMotion technology. They deliver vibrant colours, deep blacks, and adaptive refresh rates up to 120Hz. The larger Pro Max screen provides a more immersive experience for movies, gaming, and content creation, while the Pro offers more portability for everyday use. Both models include Dynamic Island and Always-On display, ensuring notifications and information are easily visible without unlocking the phone.
The unibody aluminium design, paired with Ceramic Shield 2 on both front and back, ensures durability and a premium feel. Despite the heavier Pro Max, it assures comfort and structural integrity well. Both devices are rated IP68 for water and dust resistance.
Camera System

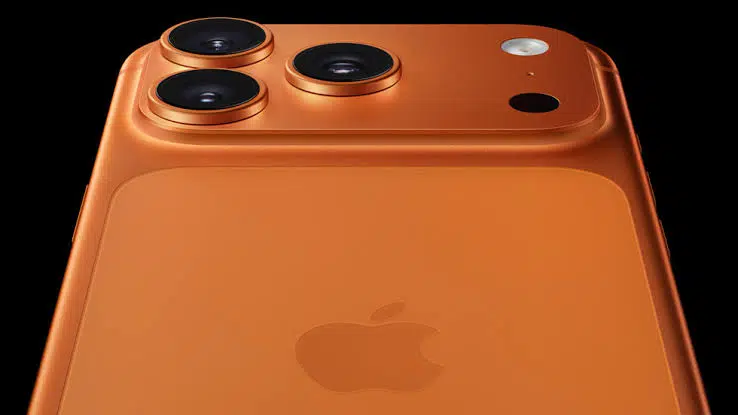

The 48MP Pro Fusion camera system on both devices greatly improves photography capabilities. The wide, ultra-wide, and telephoto lenses offer professional-level control and flexibility. The Pro Max enhances zoom capabilities with its larger telephoto lens, allowing for higher-quality optical zoom shots.
The Photonic Engine, Deep Fusion, and Smart HDR 5 optimize image quality and reduce noise, improving low-light photography. Macro photography, cinematic video, spatial video, ProRAW, and ProRes RAW features make both phones suitable for professional photographers and videographers.
The 18MP front camera with Center Stage enables precise video calls and selfies, maintaining sharp detail and offering features like autofocus, Photonic Engine enhancements, and cinematic stabilization.
Battery Life and Charging
Battery life has been extended considerably. The Pro supports up to 33 hours of video playback, while the Pro Max reaches up to 39 hours. Fast-charging capabilities enable up to 50% charge in 20–30 minutes, depending on the charging method, while MagSafe allows up to 25W wireless charging. Both devices include lithium-ion rechargeable batteries and support USB-C fast charging and display output, making them versatile for work and leisure.
Storage and Connectivity
Storage ranges from 256GB to 1TB on the Pro, and up to 2TB on the Pro Max, catering to heavy users who store large volumes of media. Cellular support includes 5G (sub-6 GHz and mmWave) with 4×4 MIMO, LTE, UMTS, and GSM bands, ensuring global compatibility. Wi-Fi 7, Bluetooth 6, Thread networking, and Apple N1 wireless chip guarantee fast, reliable connectivity. Advanced eSIM technology provides flexibility and security for travellers.
Pros and Cons
iPhone 17 Pro Pros:
- Compact and lightweight design
- 6.3-inch high-resolution OLED display with 120Hz refresh rate
- 48MP Pro Fusion camera system with advanced photography features
- Durable Ceramic Shield 2 and IP68 water resistance
Cons:
- Smaller battery compared to Pro Max
iPhone 17 Pro Max Pros:
- Larger 6.9-inch display for immersive viewing
- Extended battery life (up to 39 hours of video playback)
- Superior telephoto zoom capabilities
- Same premium build quality and water resistance
Cons:
- Heavier and less pocket-friendly
Pricing
The iPhone 17 Pro starts at $1,099, with higher storage options increasing the price. The Pro Max begins at $1,199, reflecting its larger display, extended battery, and additional storage option. Optional trade-in programs and monthly installments make upgrading more accessible. Financing through Apple Card allows zero-interest monthly payments, giving flexibility to spread out the cost.
Who should choose which model?
iPhone 17 Pro: Everyone. This device is ideal for users who prefer a lighter, more compact option with excellent performance, camera quality, and battery life. It is for everyday use, gaming, and photography.
iPhone 17 Pro Max: People who prioritize immersive display, longer battery life, enhanced zoom photography, or a larger storage capacity.
Final takeaway
- The Pro model remains compact, efficient, and versatile.
- The Pro Max introduces stronger battery life and enhanced cameras.
- Apple has widened the gap between the two Pro versions.
- Buyers should consider their daily usage patterns before making a decision.
Wrapping up,
The iPhone 17 Pro and 17 Pro Max share top-tier specs but serve different buyers. If compact handling matters, the Pro is the smarter fit; if display size and battery rule, the Pro Max wins. Compare pricing and availability wherever you are to find the model that best suits your lifestyle.
Frequently Asked Questions about iPhone 17 Pro
What is the main difference between the iPhone 17 Pro and the iPhone 17 Pro Max?
- Pro Max has a larger 6.9-inch display, longer battery life, and a 2TB storage option.
How do their camera systems compare for low-light photography?
- Both benefit from Photonic Engine, Deep Fusion, and Smart HDR 5, but Pro Max’s telephoto lens slightly improves low-light zoom shots.
Which model has better battery life for daily use?
- Pro Max offers longer battery life due to its larger battery.
Is the Pro Max noticeably heavier or more complex to handle?
- Yes, the Pro Max is heavier at 233g, which can affect one-handed use.
Does the Pro Max offer higher resolution or display advantages?
- Pixel density is the same; Pro Max’s advantage is a larger display area.
Are any exclusive Pro Max features not available on the Pro?
- They do. It has a 2TB storage and a longer battery life.
How does pricing compare between the two models?
- Pro Max is more expensive due to its larger display, battery, and storage.
Which model is better for gaming and high-performance tasks?
- The A19 Pro chip powers both; the choice depends on your preference for screen size and battery requirements.
Are there any design differences besides size?
- Both share the same aluminium unibody and Ceramic Shield 2 design; the main difference is weight and dimensions.
How do users rate their experience with each model?
- Early feedback praises performance, camera quality, and display; Pro Max is preferred by users who want more screen real estate.
Do storage or RAM differ significantly between the two?
- RAM is similar; storage differs, with Pro Max offering up to 2TB.
Which model offers better value for money in 2025?
- It depends on user needs: Pro balances portability and performance, and Pro Max excels in battery life and display size.
